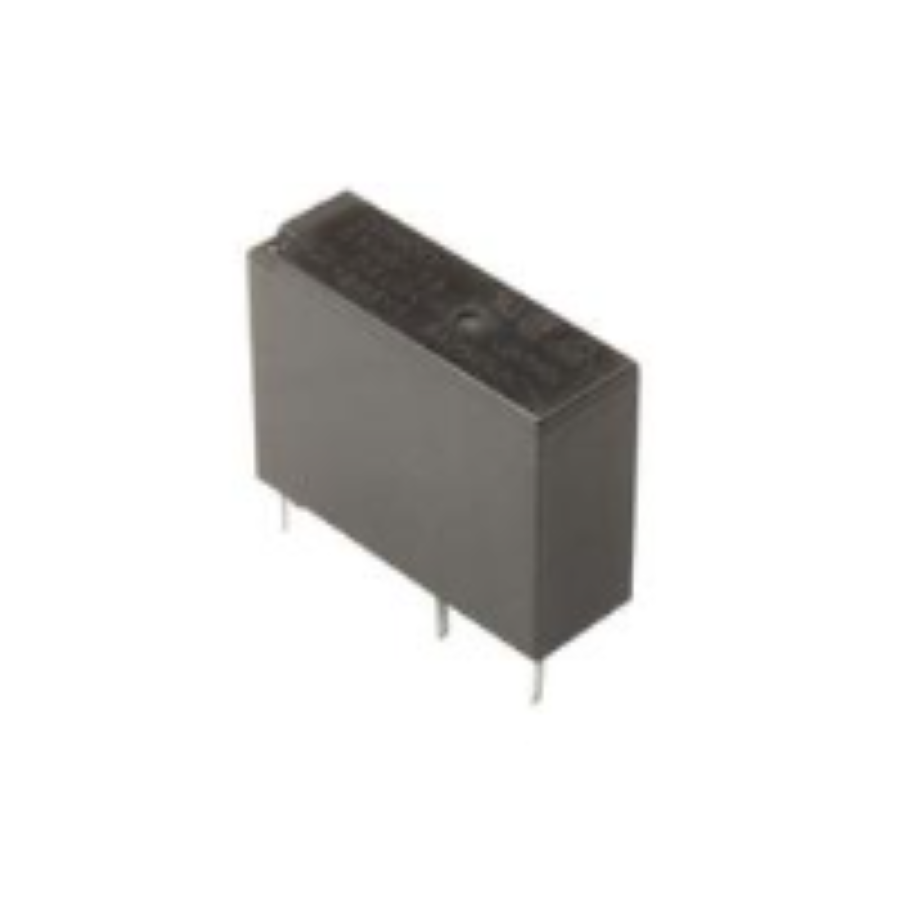

G5NB-1A DC24
Manufacturer:
Omron
Mfr.Part #:
G5NB-1A DC24
Datasheet:
Description:
Power Relays Through Hole 8.3 mA 2.88 kΩ 24 V General Purpose
| Parameter | Value |
|---|---|
| Length | 20.5 mm |
| Width | 7.2 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Power Rating | 200 mW |
| Height | 15.3 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Weight | 4 g |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 8.3 mA |
| Max Current Rating | 3 A |
| Max Voltage Rating (DC) | 30 V |
| Throw Configuration | SPST |
| Max Voltage Rating (AC) | 250 V |
| Coil Voltage (DC) | 24 V |
| Coil Current | 8.3 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 2.88 kΩ |
| Relay Type | General Purpose |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Contact Current Rating | 3 A |
| power consumption | 200 mW |
| Termination Style | PC Pin |
| Switching Voltage | 250 VAC, 30 VDC |
| Coil Power | 200 mW |
| Must Operate Voltage | 18 V |
| Must Release Voltage | 2.4 V |
Stock: 557
Distributors
pcbx
pcbxUnit Price$0.71664
Ext.Price$0.71664
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.71664 | $0.71664 |
| 10 | $0.56947 | $5.69470 |
| 25 | $0.51786 | $12.94650 |
| 50 | $0.47093 | $23.54650 |
| 100 | $0.42826 | $42.82600 |
| 300 | $0.40533 | $121.59900 |
| 500 | $0.38364 | $191.82000 |
| 1000 | $0.36133 | $361.33000 |
